Quick Details

  • Condition: New
  • Type: Woodworking Planer
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: HZH
  • Model Number: BQ1528
  • Voltage: 380V
  • Power(W): 64KW
  • Dimension(L*W*H): 9000*2600*2300mm
  • Weight: 31T
  • Certification: ISO9001
  • Warranty: One year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Color: green
  • veneer thickness: 0.2-3mm
  • Usage: veneer peeling machine

Packaging & Delivery

Packaging Details: plastic film
Delivery Detail: Shipped in 40 days after payment

Specifications

1 max.slicing speed 50pcs/min
2 high efficient easy operation
3.Max allowed wood Length 2800mm
4.ISO9001



Model

BQ1528

Max length of logs

2800mm

Max radius of logs

660mm

Thickness of veneer

0.3~2.5mm

Working stroke

450mm

Slicing speed

60pcs/min

Wood clamping speed

25mm/s

Fixing of Knife

Hydraulic

Auto feeding

Servo system

Main motor power

37kw DC motor

Wood Clamping motor

7.5kw*2

Knife Feeding motor

2kw*2 servo motor

Knife clamping motor

5.5kw Hydraulic

Dimension

9*2.6*2.3m

Weight

31T

Function

This machine adopts technique overseas and is developed by our company independently. It slices solid wood with straight grain, runs stably and precisely, veneer thickness is uniform. It is mainly used in solid wood, plywood, MDF, flooring and furniture production.



Characteristics:

1 Servo motor drives the feeding of precise screw, guarantee the quality and precision of veneer

2 The heating system effectively avoid the stain of veneer

3 Automatic hydraulic blade holding system improves working efficiency

4Blade angle adjusting system slicing all kinds of veneer easily

5 All switch buttons are gathered in control cabinet, it is easy to control the machine.





BQ1528 Video online:  http://v.youku.com/v_show/id_XNjgxMDYyMDU2.html







 Veneer peeling machine              Vertical veneer slicer                        Horizontal veneer slicer



Payment: T/T or L/C

Package: Bare packing and fit in container directly.

Delivery: About 50 days after receive the down payment.

Warranty: Machine supplied quality guarantee period is: one year for mechanical parts and three months for electrical parts. Warranty is counting from the date of B/L.



Packaging & Shipping

 Packaging :Seaworthy packing  (Plastic film )



Shipping :1.We could send the items in 30 working days  generally after everything assured .

2. By sea is normally use through your forwarder, if you have no forwarder,we can arrange our cooperative forwarder for you if need.





Our Services

 Please see this below:



1).Quick delivery : 5 days after payment,in the unlikely event the date maybe delayed due to a shortage,We will inform you avia message or email immediately



2).Warranty: 12months. If you have some problems with our machine,We will send the engineer to fix it within the warranty day .

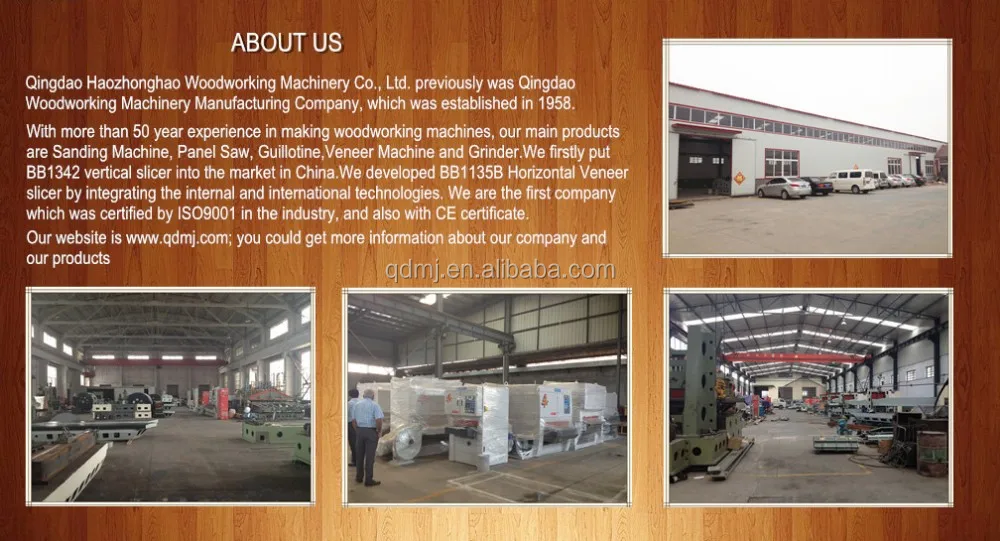

Company Information
